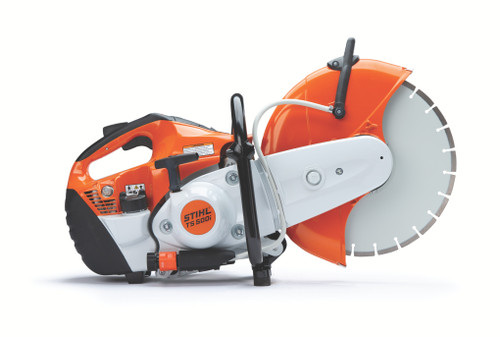

Revolutionize your demolition, paving, and heavy hardscaping capabilities with the groundbreaking STIHL TS 500i Cutquik® Machine. Marking an exceptional industry first, this elite concrete saw is the premier handheld outdoor power tool to feature an electronically controlled fuel-injection system. By completely replacing traditional carburetors with high-pressure electronic fuel injection, this cutting-edge machine increases overall power and cutting performance by over 15% while remaining light, balanced, and highly agile in the field.
The elimination of the manual choke takes the guesswork out of jobsite workflow. Starting is faster and more reliable than ever: simply set the master switch to "On," prime the bulb, and pull. Much like a high-performance sports car, the fuel-injected engine delivers amazing throttle acceleration, pulling the 14-inch cutting wheel back up to maximum operational speeds nearly instantly. It handles heavy-duty trenching and structural layout cuts up to 4.9 inches deep while delivering optimal torque across its entire RPM spectrum.
Advanced Dust Control & Filtration: To safeguard peak engine performance, the TS 500i comes up-armored with a specialized X2 air filtration system that maintains an incredible 99.96% cleaning efficiency in dust-choked jobsite conditions. Furthermore, it features an advanced Electronic Water Control (EWC) system, allowing operators to easily make fine, push-button water flow adjustments while actively cutting to ensure absolute dust compliance.
Please Note: Premium abrasive wheel included out of the box. High-performance Diamond Wheels are sold separately.
Key Features & Benefits
- First-Ever Electronic Fuel Injection: Advanced EFI technology maximizes engine efficiency, increasing power output by over 15% while slashing exhaust emissions.
- Choke-Free Easy Starting: Simplified start sequence removes the manual choke lever, guaranteeing reliable first-pull ignition in hot or freezing climates.
- Amazing Throttle Acceleration: Intelligent fuel mapping delivers lightning-fast throttle response to get you back into cuts faster than thought possible.
- Integrated Electronic Water Control (EWC): Easily tune dust suppression fluid levels from the keypad while cutting, protecting your wheel and workspace.
- 99.96% Efficient X2 Air Filtration: Multi-stage pre-separation system bars fine concrete particulates from entering the engine, optimizing tool life.
- Anti-Vibration System: Heavy-duty internal rubber dampeners isolate handle frames from engine vibrations to minimize worker fatigue.
Technical Specifications & Performance Ratings
| Brand / Tier | STIHL® (Official Original Equipment Power Series) |
| Product Model Line | TS 500i Cutquik® Electronic Fuel-Injected Saw |
| Engine Displacement | 72.2 cc (4.41 cu. in.) |
| Engine Power Output | 5.2 bhp (3.9 kW) Fuel-Injected 2-Stroke Engine |
| Fuel Delivery System | Electronically Controlled High-Pressure Fuel Injection (EFI) |
| Abrasive Wheel Size | 14 inches (350 mm) |
| Maximum Cutting Depth | 4.9 inches (125 mm) |
| Arbor Connection Size | 20 mm Safety Arbor Spindle Bores |
| Air Filter Configuration | X2 Multi-Stage System (99.96% Particulate Efficiency) |
| Dust Control System | On-Board Electronic Water Control (EWC) Panel |
| Dry Operational Weight | 22.5 lbs (10.2 kg) Bare Weight |
| Standard Included Wheel | (1) 14" Premium Abrasive Cutting Wheel for Concrete/Stone |
| Environmental Compliance | California Proposition 65: Cancer and Reproductive Harm |
